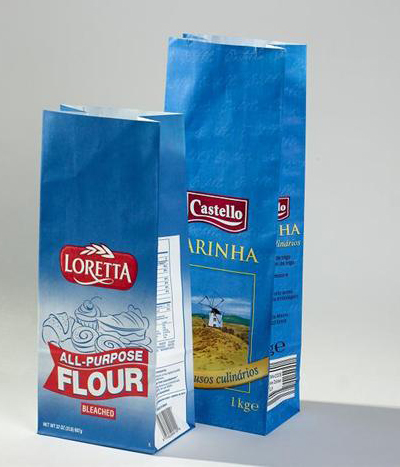

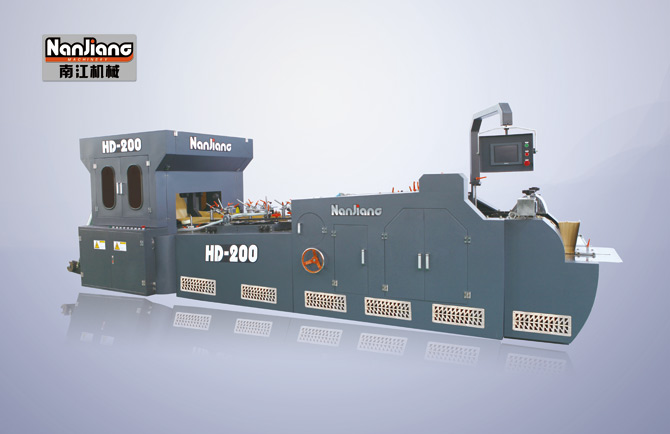

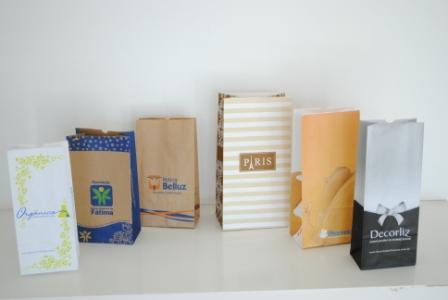

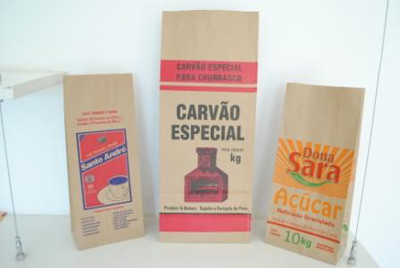

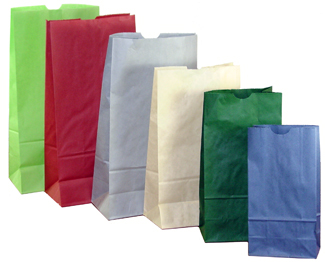

This machine is built to make shopping bags or food bags with paper rolls, paper can be pre-printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for grocery, loading foods, sugar, flour and so on.
|
Model #:
|
HD-200
|
|
|
|
Bag Tube Length
|
170mm-370mm
/6.7"-14.6"
|
|
|
Bag Width
|
80mm-200mm
/3"-8"
|
|
|
Bag Bottom Width
|
50mm-110mm
/2"-4.3"
|
|
|
Paper Roll Width
|
290mm-640mm
/11.4"-25"
|
|
|
Maximum Paper Roll Width
|
800mm
/31.5"
|
|
|
Paper Weight
|
60-150gsm
|
|
|
Production Speed
|
100-200pcs/min
|
|
|
Total Power
|
10kw
|
|
|
Machine Weight
|
6.5 ton
|
|
|
Machine Dimension（LxWxH）
|
7000x1800x1900mm
|
|
