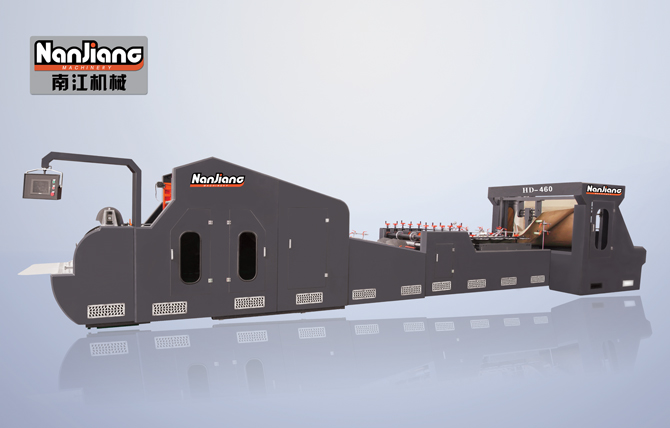

HD-460 High-speed Roll Fed Paper Bag Machine
HD-460型高速卷筒...



This is a new high speed square bottom paper bag machine made by us. Its advantages are high speed, high efficiency and wide-range adjustment; In addition, it has the international advanced technology to make bags without creases on each side. It is easy to operate, lift raw materials automatically, correct errors automatically and control tension automatically, all the processes are done by PLC. This machine is the quintessence both of home and abroad.



Paper Roll Width

530-1350mm

Tube Length

300-700mm

Bag Width

170-460mm

Bottom Width

80-200mm

Paper Weight

70-150g/m2

Max. Paper Roll Diameter

ф1500mm

Material Core Diameter

ф76mm

Production Speed

80-130 bags/min

Total Power

17Kw

Machine Weight

15000 kg

Machine dimensions

135000*2300*2300mm


Video

Previous:HD-430-1 Roll Fed Square Bottom Paper Bag Machine
Next:HD-550 High Speed Roll Fed Paper Bag Machine
