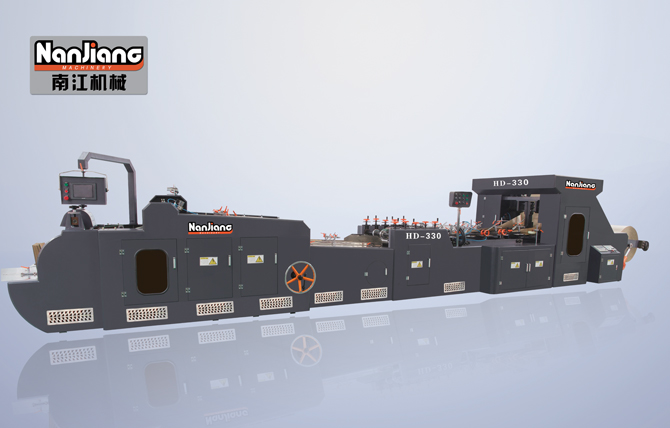

HD-330 Roll Fed Square Bottom Paper Bag Machine
HD-330型卷筒式四...




This machine is built to make shopping bags or food bags with paper rolls, paper can be pre-printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on.



Model

HD-330

Paper Roll Width

410-990mm

Tube Length

280-600mm

Bag Width

120-330mm

Bottom Width

70-150mm

Paper Weight

70-140g/m2

Max. Paper Roll Diameter

ф1200mm

Material Core Diameter

ф76mm

Production Speed

80-190bags/min

  Total Power

13Kw

Machine Weight

9000kg

Machine dimensions

12500*1800*2000mm

Video
